| Place of Origin: | China |
|---|---|
| Brand Name: | huaguard |
| Certification: | ROHS FCC CE |
| Model Number: | K2 |
| Minimum Order Quantity: | 1 |
| Price: | USD 120/pc |
| Packaging Details: | 1 set/box, including patrol reader, USB cable, charger, holster, software 10 boxes/small carton, 35.5*23.4*33 32 boxes/big carton, 51.5*45.4*33 |
| Delivery Time: | 5-12 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs/month |
| High Light: | Tracking Real Time Guard Tour System,Real Time Guard Tour System Wand,Real Time guard clocking system |
||
|---|---|---|---|

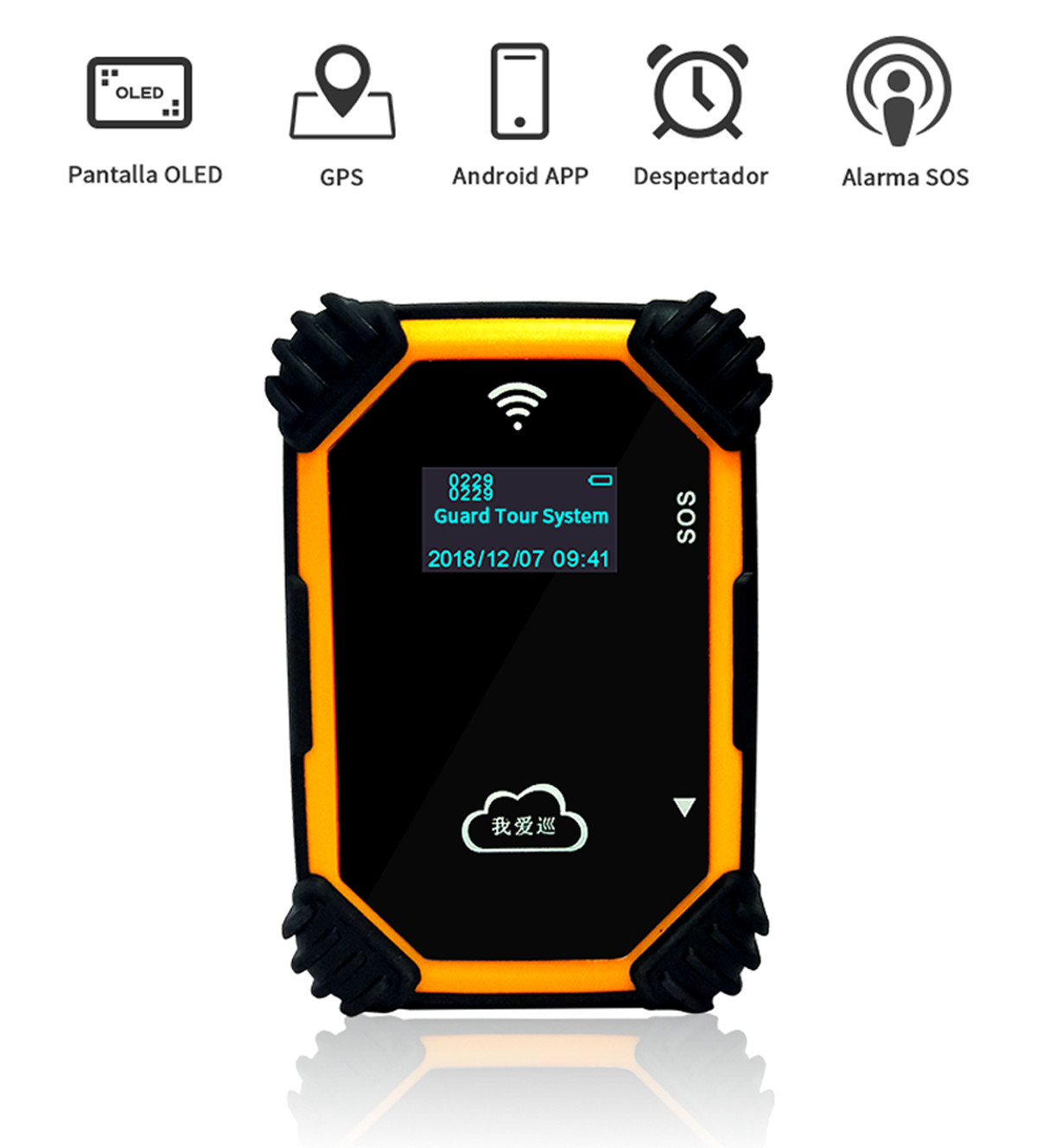

GPS Tracking RFID 125 kHz Checkpoint Online Security Software Patrol System Guard Clocking Reader HUA - K2
4G GPS Realtime HUA-K2 Quick Details

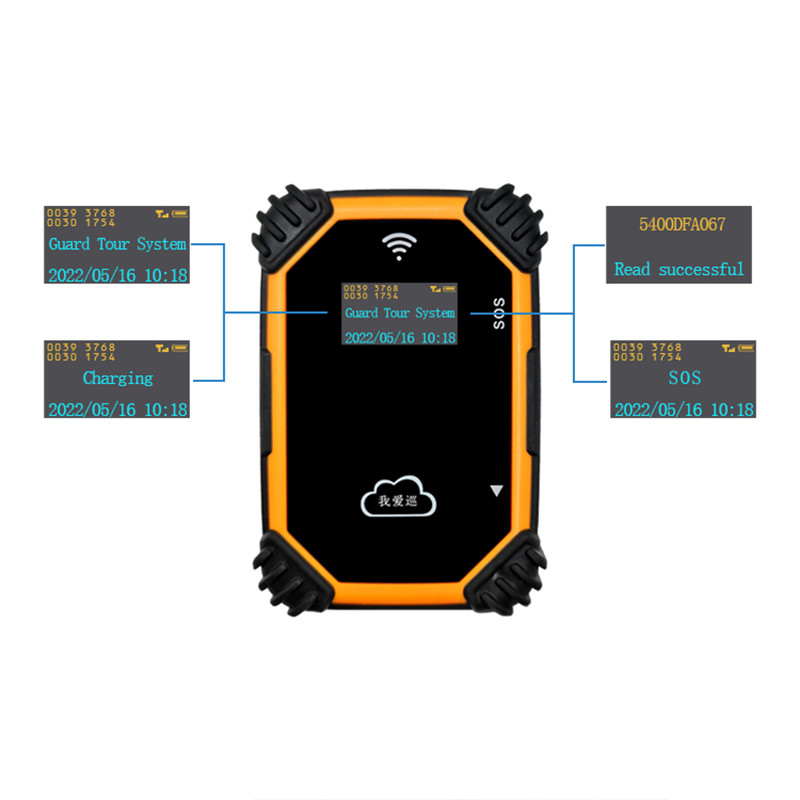

HUA-K2 is patrol system guard clocking RFID 125 kHz Reader with GPS tracking function and checkpoint online security software. It is an advanced online guard tour system device with LCD display screen to various indications. K2 is a new trend of OEM guard tour product. Its free web-based cloud software with multiple reports is simple to use. And the mobile APP, which makes the users more convenient to use, is also free. The device is with GPS positioning, supervisor can view patrol details and reports both on PC and APP, real implementation of anytime and anywhere to view patrol data, so that the patrol management is no longer limited to computer.
Product Features
Realtime Data Transmission: No need USB cable to transmit data, The data can be uploaded to cloud monitoring software in real time through network,
Network: 4G/3G/2G (with GPS positioning function), Need to insert SIM card with data
Fast Reading Mode: RFID 125kHz, The device's read distance is 3-5 cm within read time 0.3 seconds.
Low Power Consumption: Standby current 0.12mAh, A full charge will support about a week on the basic of 400 times reading per day. A full charge can take up for about 20 hours with the GPS on all the time.

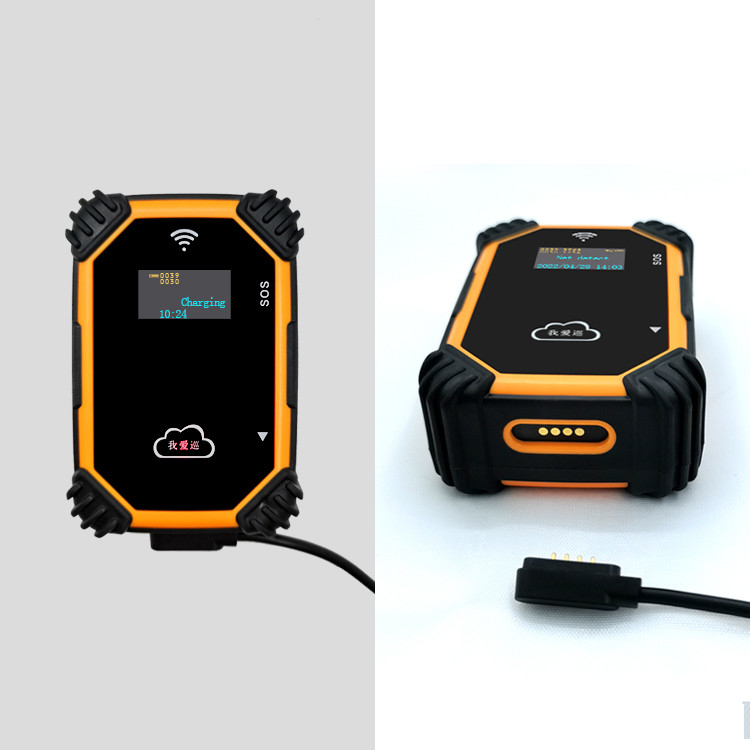

Charging Port: Magnetic suction interface charging port
Anti-fall and Waterproof: The protection grade is IP 68. The device is made for ABS+PE double color (Yellow / Black) injection molding. The device can still work even after falling from such a 20 m high place.
Free Software with Multiple Reports: Software in full English, Can send inspection record to supervisor's email daily, Can set Alarm clock to remind the guard, SOS button is long pressed to sent the signal to the software.
| Dimension | 158*26(mm) |
| Weight | 125g |
| Read mode | RFID auto-induction, no need to touch |
| Read distance | 3-5 cm |
| Read indication | light and vibration |
| Memory capacity | 16MB, can store 60,000 piece records |
| Battery life | A full charge can support about 15days, 200 times reading per day |
| Communication | USB, no need to install USB driver |
| Software | Stand-alone, free |

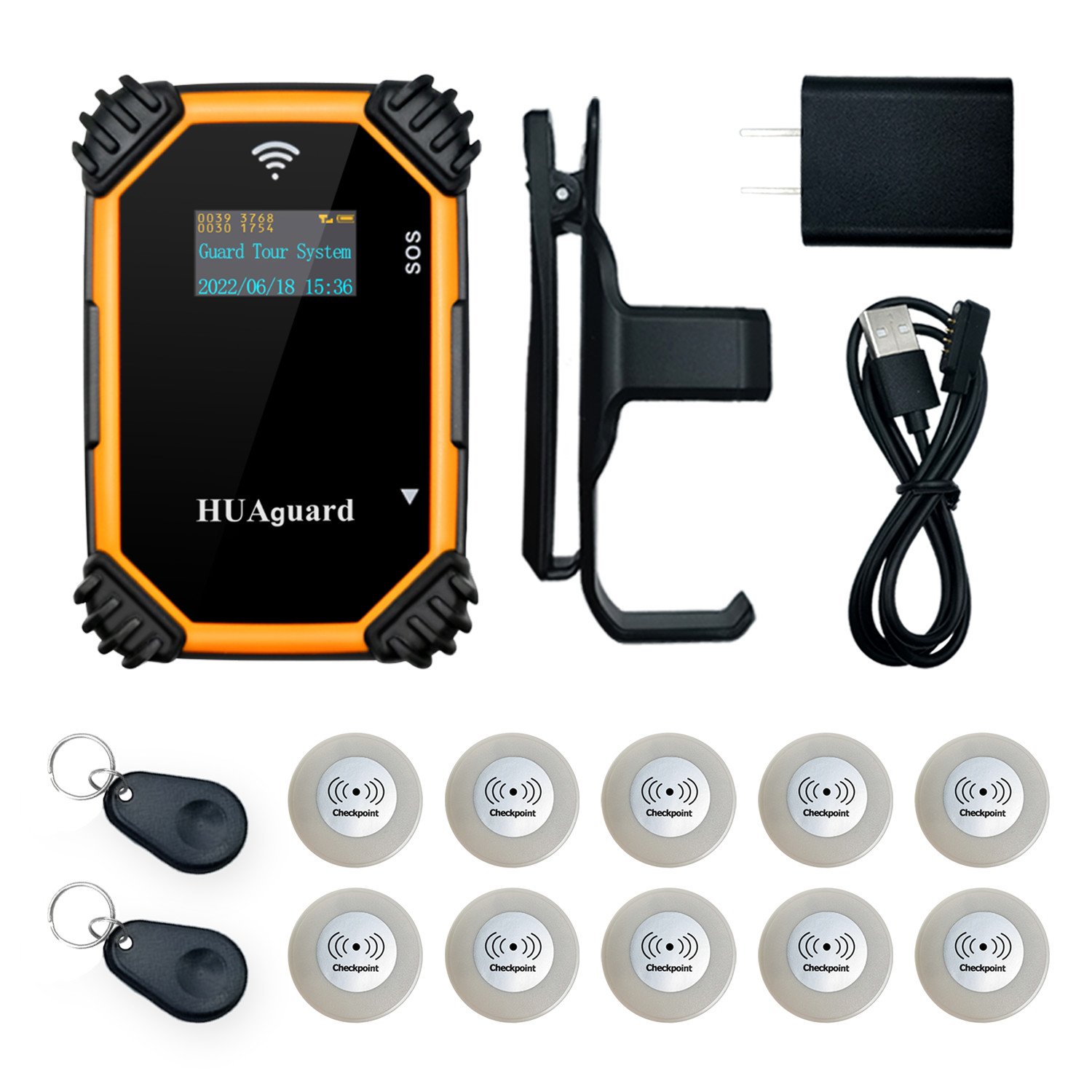

Package
One set package box includes:
(1) 1pc HUA-K2 reader
(2) 1pc Back Clip
(3) 1pc Magnetic USB cable
(4) 1pc Charger (4 charger types option, Please connect us and select what kind of charger type you need)
(5) 10 Checkpoints
(6) 2 ID tags

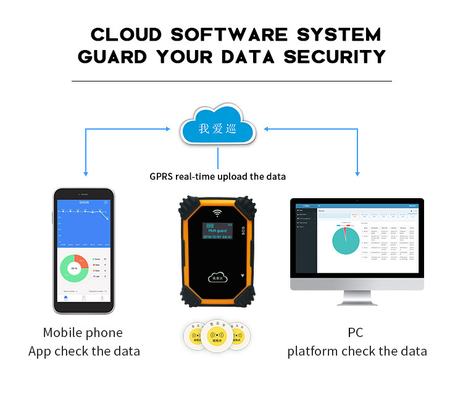

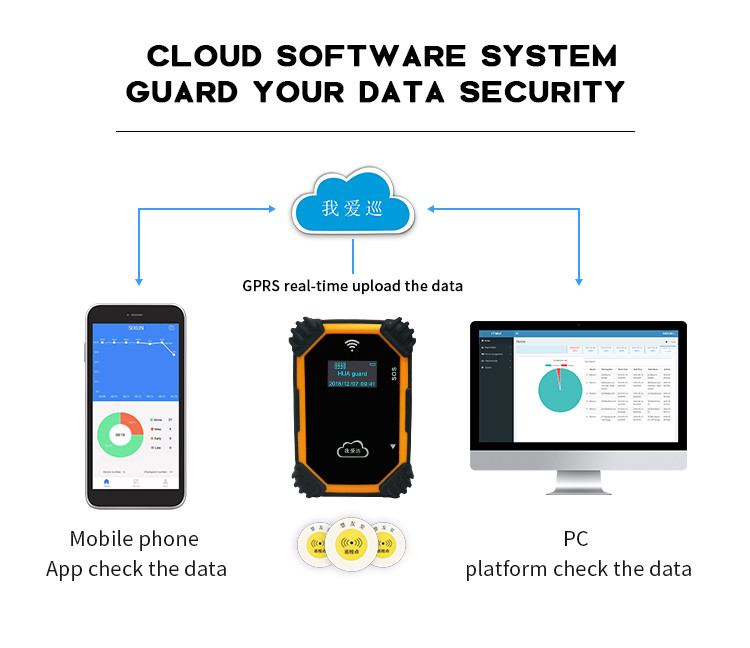

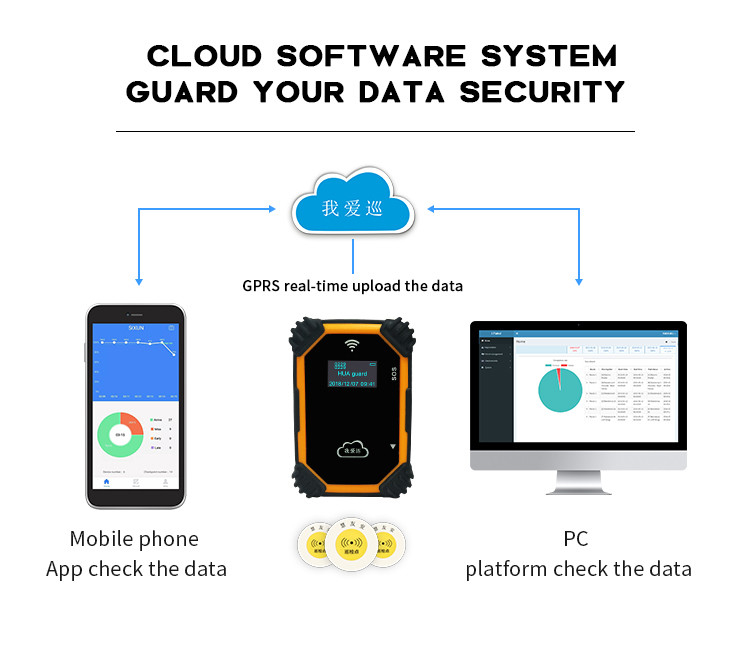

How HUA-K2 works
First, read ID tag with HUA-K2 device. Second, read checkpoints. Third, set a patrol plan in the cloud software. Fourth, start to patrol, the data will be uploaded in realtime. Fifth, view patrol record not only on PC but also on Mobile APP.
Certifications
In addition to CE ROHS FCC and other international certificates, We are the only manufacturer in China to obtain the certificate of invention in the field of patrol system.
FAQ
A: We provide standard cloud software in English based on our own server free of charge. Android Mobile APP for free.
A: Yes, we could customize standard software for you in othe languages for free.
A: My pleasure, Just feel free to contact us
