| Place of Origin: | China |
|---|---|
| Brand Name: | HUAguard |
| Certification: | ROHS/CE/FCC |
| Model Number: | HUA-K2 4G version |
| Minimum Order Quantity: | 1 |
| Price: | USD 85/pc |
| Packaging Details: | 1 set/box,10 boxes/small carton (35.5*23.4*33),30 boxes/big carton (51.5*45.4*33) |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 500 pcs/day |
| Reading Type: | RFID | Frequency: | 125 KHz |
|---|---|---|---|
| Battery: | Lithium Battery | Texture: | PVC |
| Color: | Yellow Plus Black | Data Transmission: | Wifi/GPRS Real-time |
| High Light: | RFID Realtime Guard Tour System,Realtime Guard Tour System IP68,Monitoring checkpoint patrol systems |
||
Realtime Monitoring Factory Use Guard Patrol System HUA-K2
Quick Details

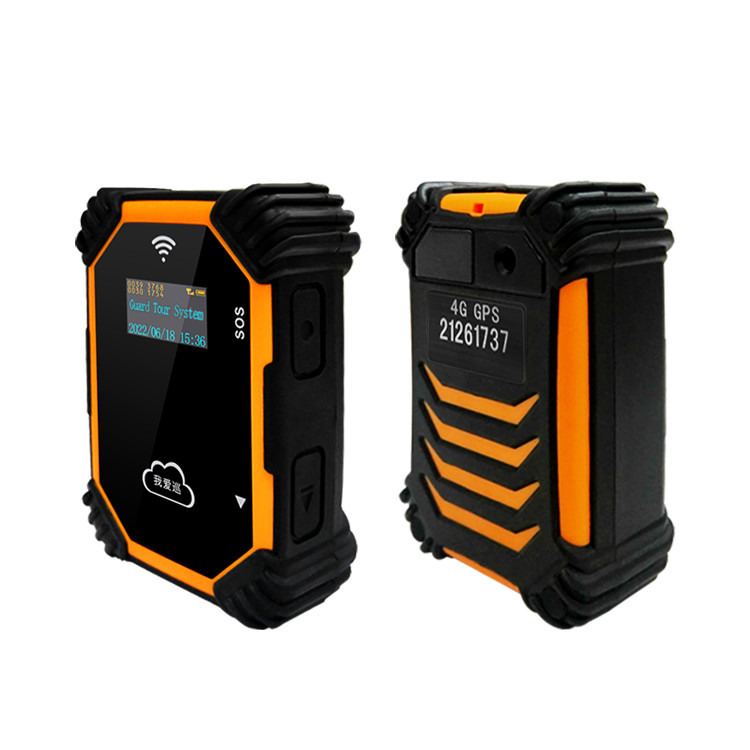

HUA-K2 is an advanced online guard tour system device with LCD display screen to various indications. K2 is a new trend of OEM guard tour product. Its free web-based cloud software with multiple reports is simple to use. And the mobile APP, which makes the users more convenient to use, is also free. The device is with GPS positioning, supervisor can view patrol details and reports both on PC and APP, real implementation of anytime and anywhere to view patrol data, so that the patrol management is no longer limited to computer.
Technical Parameters
| Data transmission | GPRS real time guard tour system |
| Network | 4G+GPS |
| Case | ABS+PE double color injection molding |
| Read mode | RFID |
| Protection grade | IP68 |
| Reading prompt | Light+Beep+LCD screen display |
| Power consumption | Standby current 0.12mAh |
| Battery | 3.7V rechargeable lithium battery |
| Battery capacity | 1,800 mah, a full charge can take up for about 20 hours with the GPS on all the time |
| Dimension | 86mm*57mm*28mm |
| Charging time | About 5 hours |
| Reading distance | 3-5cm |
| Reading time | less than 0.3s |
| Charging Port | Magnetic suction port |
| Storage | About 60,000 records |
Product Characteristics
Realtime Data Transmission: No need USB cable to transmit data, The data can be uploaded to cloud monitoring software in real time through network,
Network: 4G/3G/2G or GSM, Need to insert SIM card with data
Fast Reading Mode: RFID 125kHz, The device's read distance is 3-5 cm within read time 0.3 seconds.
Low Power Consumption: Standby current 0.12mAh, A full charge will support about a week on the basic of 400 times reading per day. A full charge can take up for about 20 hours with the GPS on all the time.
Charging Port: Magnetic suction interface charging port
Anti-fall and Waterproof: The protection grade is IP 68. The device is made for ABS+PE double color (Yellow / Black) injection molding. The device can still work even after falling from such a 20 m high place.
Free Software with Multiple Reports: Software in full English, Can send inspection record to supervisor's email daily, Can set Alarm clock to remind the guard, SOS button is long pressed to sent the signal to the software.
Package

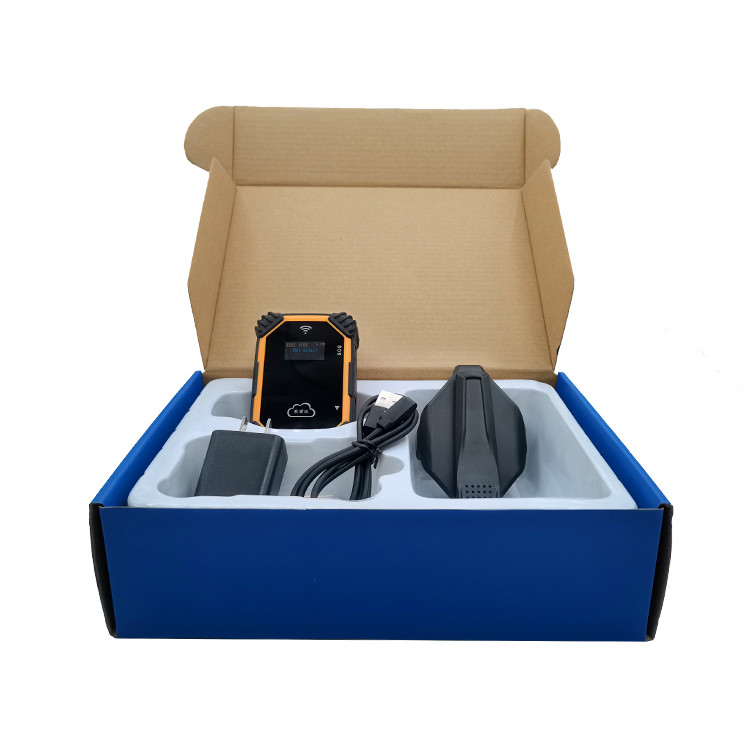

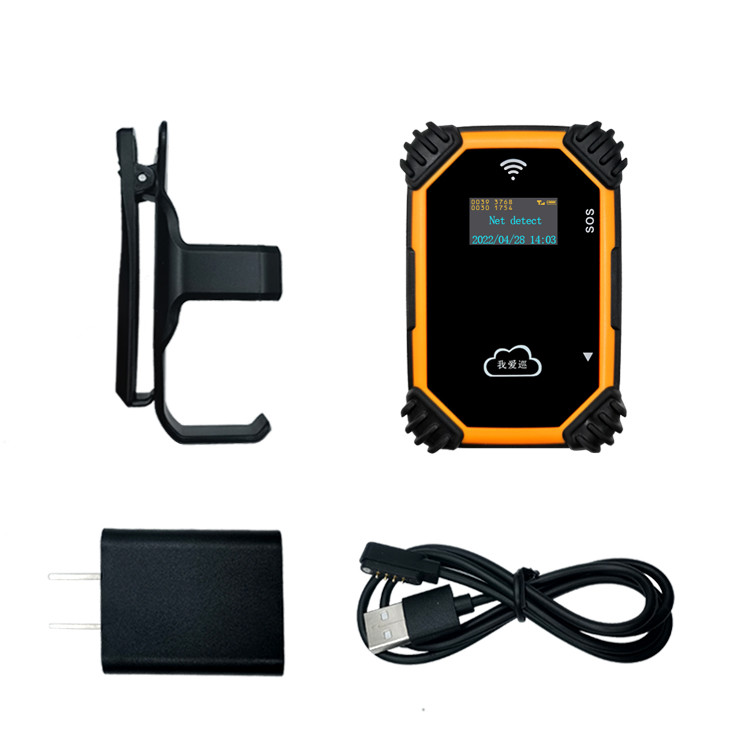

One set package box includes:
(1) 1pc HUA-K2 reader
(2) 1pc Back Clip
(3) 1pc Magnetic USB cable
(4) 1pc Charger (4 charger types option, Please connect us and select what kind of charger type you need)
(5) 10 Checkpoints
(6) 2 ID tags
How HUA-K2 works
First, read ID tag with HUA-K2 device.
Second, read checkpoints.
Third, set a patrol plan in the cloud software.
Fourth, start to patrol, the data will be uploaded in realtime.
Fifth, view patrol record not only on PC but also on Mobile APP.
FAQ
A: We provide standard cloud software in English based on our own server free of charge. Android Mobile APP for free.
A: Of course. You can order one set to test first.
A: My pleasure, Just feel free to contact us
