| Place of Origin: | China |
|---|---|
| Brand Name: | HUAguard |
| Certification: | ROHS/CE/FCC |
| Model Number: | HUA-K6 |
| Minimum Order Quantity: | 1 |
| Price: | USD 260/pc |
| Packaging Details: | 1 set/box,10 boxes/small carton,30 boxes/big carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500 pcs/day |
| Operation System: | Android 10.0 | Extensible Capacity: | 32GB |
|---|---|---|---|

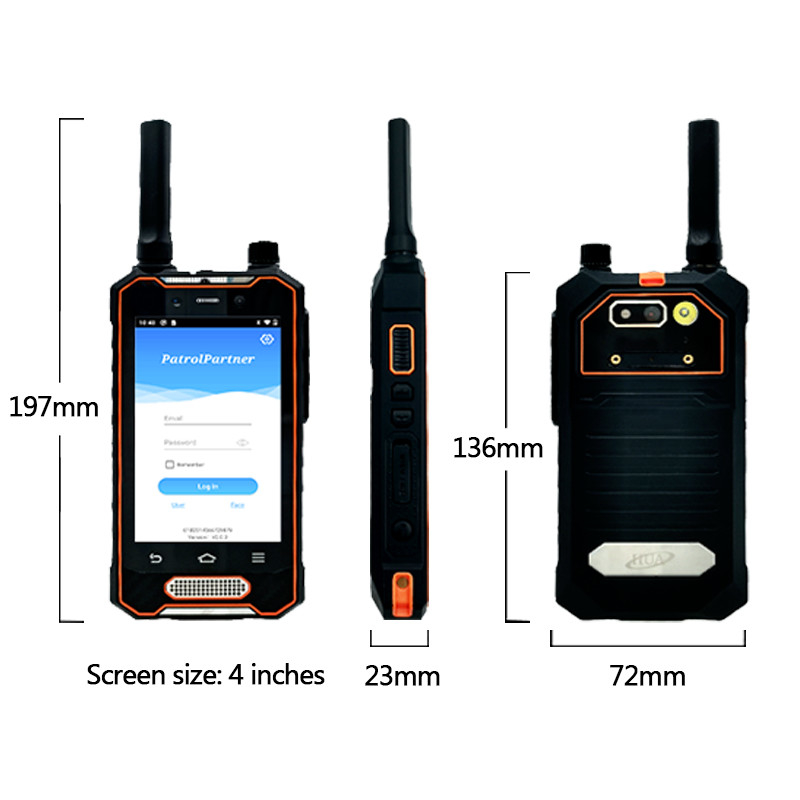

| Protection Grade: | IP68 | Dimension: | 194*72*23 Mm |
| Weight: | 280g | Data Transmission: | WIFI/4G/USB/GPRS |
| High Light: | GPRS GPS Guard Tour System,GPS Guard Tour System RFID,GPS guard patrol management system |
||
GPS Tracking 4G GPRS GSM Support Guard Tour System RFID QR Code Checkpoints Scanner
4G/GPRS/GSM GPS Tracking Guard Tour System HUA-K6 Quick Details
HUA-K6 is an advanced GPS tracking guard tour system device with touch screen and camera to various indications. K6 is a new trend of OEM guard tour product. Its free web-based cloud software with multiple reports is simple to use. And the android 10.0 Patrol Partner APP makes the users more convenient to use. The device is with GPS positioning, supervisor can view patrol details and reports both on PC and APP, real implementation of anytime and anywhere to view patrol data, so that the patrol management is no longer limited to computer.
Product Features
Realtime Data Transmission: The data can be uploaded to cloud monitoring software in real time through network,
Network: 2G/3G/4G/TDD-LTE, Need to insert SIM card with data
Anti-fall and Waterproof,Dustproof: The protection grade is IP 68.
Free Software with Multiple Reports: Software in full English, Can send inspection record to supervisor's email daily, Can set Alarm clock to remind the guard, SOS icon is pressed to sent the signal to the software.
Camera: Take photo and video to record hidden danger then upload to cloud software real-timeLogin APP through Face, prevent from substitute patrols.
GPS position
Patrolman: view own location in Google Map in handheld terminal.
Supervisor: view patrolman’s location in Google Map, and replay patrolman’s running trace in different optional speed in cloud software.

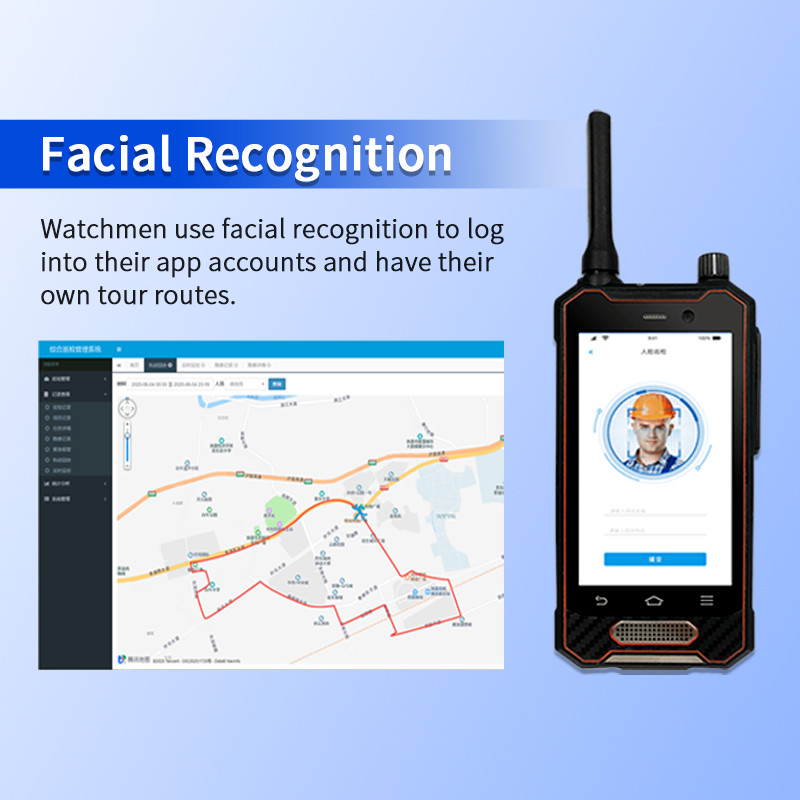

Face Recognition: Watchmen use face recognition to log into their APP accounts and have their own tour routes.
PTT(Walkie Talkie): Talk to any other patrolman in the same talkback group, on distance limite, only need network.
Qr code scanning: Quick scan code, easy and quick.
Technical Parameters
| Screen | material | TFT | |||
| size | 4 inches | ||||
| solution | 480*800 | ||||
| glass | Corning | ||||
| point | ≥5 | ||||
| technology | Capacitive | ||||
| Camera | Front | 2 million pixel | |||
| Back | 8 million pixel | ||||
| Battery | capacity | 5200 mAh | |||
| type | non-removable, rechargable | ||||
| material | Lithium | ||||
| other specifications |
Structure | Straight type | |||
| Operation system | Android 10.0 | ||||
| Processor | MT6739 1.5Ghz*4 | ||||
| Support network | 2G/3G/4G/Wifi | ||||
| Working temperature | 0°C to +60°C | ||||
| Sensor type | Gravity inductor, light sensor | ||||
Package
One set package box includes:
(1) 1pc HUA-K6 reader
(2) 1pc ejection pin
(3) 1pc Magnetic USB cable
(4) 1pc Charger (4 charger types option, Please connect us and select what kind of charger type you need)
(5) 10 Checkpoints
(6) 2 ID tags
How HUA-K6 works
First, do pre-setting and publish patrol shifts. Second, guards login APP accounts by face recognition and get their own patrol shifts. Third, go to patrol, read the tags, and complete the task at each point. Fourth, any Problems or danger, take photos or videos to record the scene and upload to the software. Fifth, check patrol reports by software, assign a guard to solve a problem or danger. Last, the assigned guard gets the task by APP, and make the problem solved, then feedback.
FAQ
A: We provide standard cloud software in English based on our own server free of charge. Android Mobile APP for free.
A: Of course. You can order one set to test first.
A: My pleasure, Just feel free to contact us
