| Place of Origin: | China |
|---|---|
| Brand Name: | HUAguard |
| Certification: | ROHS/CE/FCC |
| Model Number: | HUA-101X |
| Minimum Order Quantity: | 1 |
| Price: | USD 90-150/pc |
| Packaging Details: | 1 set/box,10 boxes/small carton,30 boxes/big carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500 pcs/day |
| Usage: | Patrol Check | Data Transmission: | USB |
|---|---|---|---|
| Featuring: | Downloader | Type: | Touch Probe |
| Frequency: | 125 Khz | Color: | Black |
| High Light: | Touch Guard Patrol Management System,Guard Patrol Management System ROHS,Management guard tour control system |
||
Stainless Steel Jet Back Handy Touch Patrol Guard Tour Software Management System
1. Description
HUAguard brand model HUA-101X is the OEM touch guard tour patrol device with stand-alone multilanguage management software. After the guard is done with his patrol assignment, the data of his inspection work can be uploaded to the software by communicating the device to PC with USB and the report can be seen and downloaded. The supervisor can view the inspection record on the software. This 101X device has 16MB storage memory, in which can store up to 10,000 data records. Its special design is to prevent repeated readings. It can be used in noisy and night environment.
2. Specifications
| Touch Guard Tour Reader |
Dimension | 180*32*24(mm) | ||||||
| Weight | 215g | |||||||
| Color | Black | |||||||
| Storage Capacity | 16MB, can store up to 10,000 records | |||||||
| Battery | 3.6V built-in lithium battery | |||||||
| Read mode | touching | |||||||
| Read distance | 0cm, must touch checkpoint | |||||||
| Read indication | light and vibration | |||||||
| Read time | less than 1s | |||||||
| Software | Stand-alone, free | |||||||
| Downloader | Dimension | 10×10×3.5 cm | ||||||
| Weight | 140g | |||||||
| Color | Black | |||||||
| Communication Port | USB | |||||||
| Physical | Alloy | |||||||
| Power | 6V , 50hz | |||||||
| Function | Communicate with computer via USB port, high-speed and stable transmission and data transfer... | |||||||
3. Touch Buttons
| Checkpoint Touch Button |
Install on wall or equipment etc as a checkpoint. | Physical: Electronic chip stored in the stainless steel case that is water-resistant. Type: 1990A-TM iButton, global unique ID. Life-span: > 20 years |
||||||
| Checkman Touch Button |
Used as patrolman identification. | |||||||
4. Advantages
1. Free Software
2. Reading indicator light
3. Long standby time
4. Low power consumption
5. Strong, and Durable
6. Water Resistance
7. Very few after sales problems
8. Logo customization for more than 50pcs
5. Applications
Railway Station
Hospital
School
Shopping mall
Factories
Bank
Museums
6. Guard Tour Management Software
HUA-101X product's software is standalone software and for free to users who brought this product. As you can see the interface, this software can help you to manage the patrol line and patrolman and view the report about how the job be done, if the patrolman is on time and set plan for guard tour patrol work.
7. System Illustration
8. Packaging

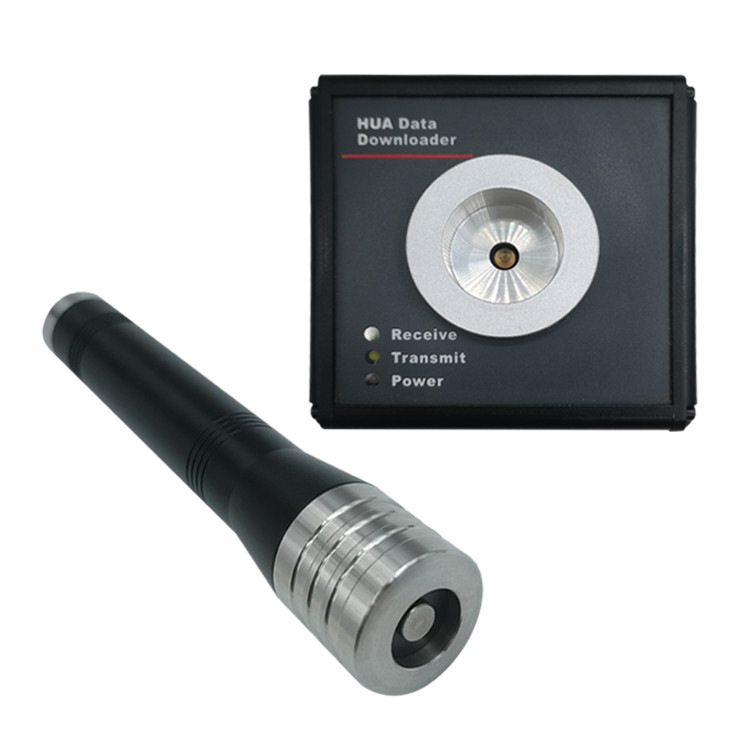

One set includes a patrol reader HUA-101X, a downloader, a charger and one cable, with free cloud management software
*There are four options for charger. Contact me to choose the charger type you need.*
FAQ
Q: Do you charge for your software? How?
A: We provide standard cloud software in English based on our own server free of charge.
Q: Do you offer other versions of software besides English?
A: Yes, we could customize standard software for you in othe languages for free.
Q: Could you please send me more details?
A: My pleasure, Just feel free to contact us
