| Place of Origin: | China |
|---|---|
| Brand Name: | HUAguard |
| Certification: | ROHS/CE/FCC |
| Model Number: | HUA-101S |
| Minimum Order Quantity: | 1 |
| Packaging Details: | 1 set/box,10 boxes/small carton,30 boxes/big carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500 pcs/day |
| Price: | USD 45/pc | IP Rating: | IP67 |
|---|---|---|---|
| Usage: | Patrol Check | Structure: | Straight Type |
| Material: | PVC | Feature: | Flashlight |
| High Light: | patrol control system,patrol clocking systems IP67,Checkpoint guard patrolling device |
||
Hardness Oxidation Anti - temper 0.45 Milliwatt Power Consumption Checkpoint Guard Tour IP67 Security Equipment
0.45 Milliwatt Power Consumption Checkpoint Guard Tour IP67 Security Equipment
Knowledge about HUA-101S

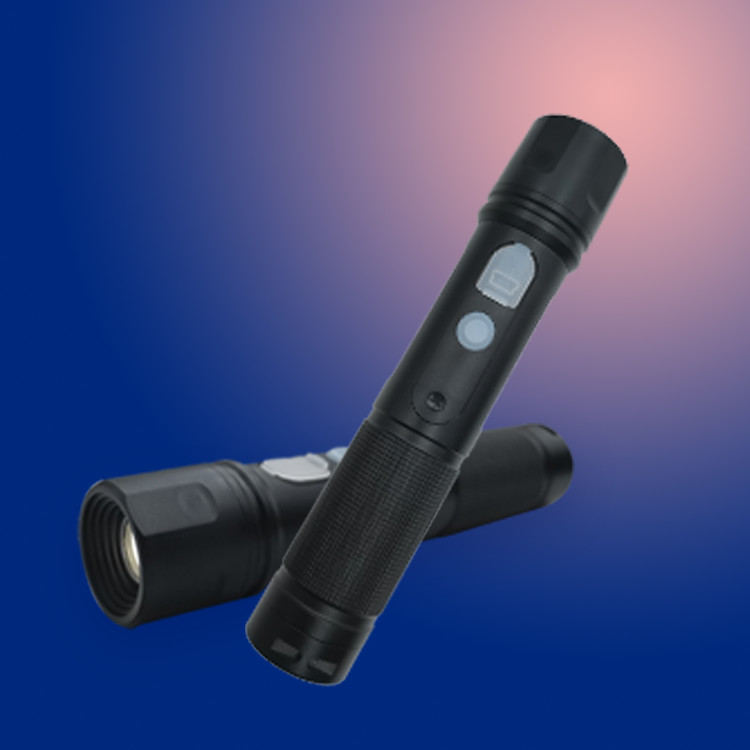

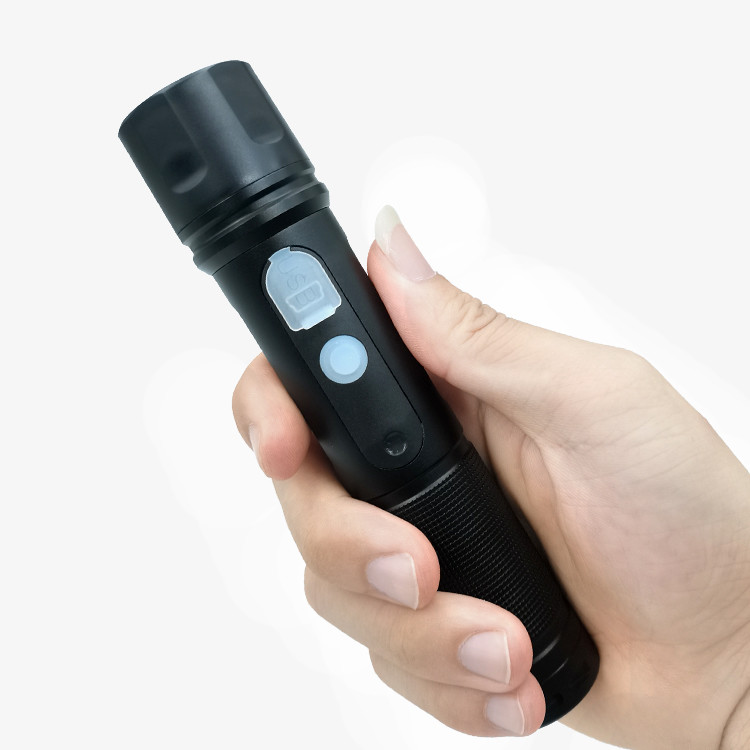

HUA-101S checkpoint guard tour security is a type of RFID supported patrol checkpoint system product with 3-speed dimming LED flashlight. The device production can be seen due to super aluminum alloy structure, surface hard oxidation treatment, anti-beat, anti-impact, waterproof design product, which is protection grade IP 67. HUA-101S checkpoint guard tour system supports personnel patrol inspection, night patrol with lighting function included guard tour reader, USB connected data transmission, supports guard tour stand-alone HUAguard software, using computer query patrol report data. HUA-101S eliminates the phenomenon that the patrol personnel cannot be scientifically and accurately assessed and managed, effectively guarantees the orderly work flow of the complex, and puts the patrol personnel management work into practice.
Characteristics
1, product performance: super aluminum alloy structure, surface hard oxidation treatment, anti fall, waterproof design
2. Storage capacity: 60,000 data stores, which can be customized expanded to 120,000 data stores
3, communication mode: USB communication mode, no need to install USB driver, plug and play
4, card reading distance: non-contact induction, 3-5 cm
5, battery capacity: 650 mA polymerized physical battery, battery life: 14 days
6, card reading prompt: successful card reading has light, sound/vibration prompt
7, battery power consumption: standby current is within 0.12 milliampere, power consumption is 0.45 milliwatt

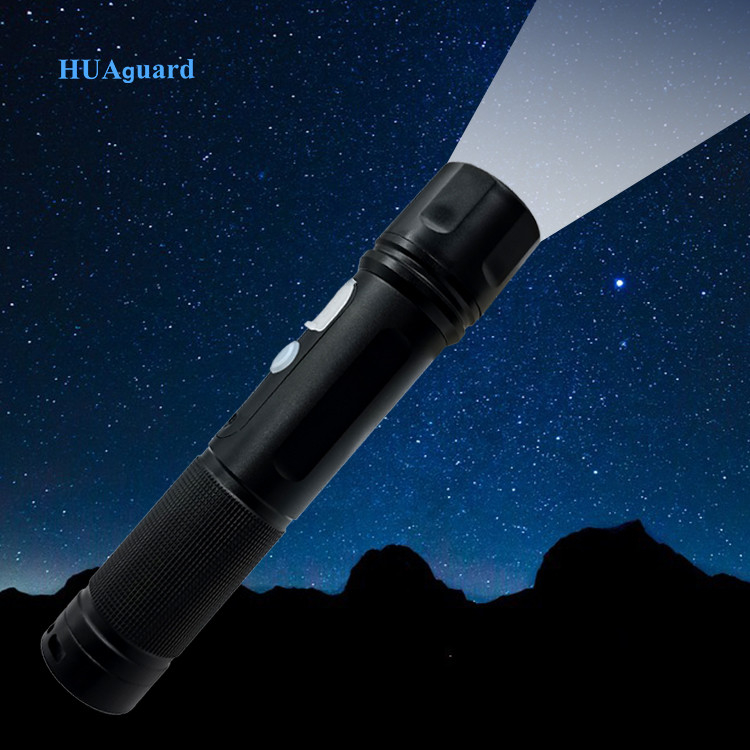

8, lighting function: flashlight lighting function
Typical property of HUA-101S
| Dimension | 158*32*30 mm | ||||
| Weight | 170g | ||||
| Read mode | RFID 125khz | ||||
| Read distance | 3-5 cm | ||||
| Read indication | Light and beep, light and vibration(optional) | ||||
| Memory capacity | 16MB, can store 60,000 piece records | ||||
| Battery | 3.6V 650mah rechargeable lithium battery | ||||
| Battery life | A full charge can support about 30days, 200 times reading per day | ||||
| Communication | USB cable to transmit data to computer | ||||
| Software | Stand-alone, multi-language, free | ||||
| Working temperature | -20℃-70℃ | ||||
Advantages
Reading prompts are triple prompt card reading included audio, LED lighting, and vibration. The battery is 3.6v /2000mAH lithium battery and its life may last for more than 10 years and may support 700,000 times reading. The support operating system of the software is XP/Win7 / Win8(32/64 bit), support Access, Sql server database. English and other languages can be customized.
Operating temperature : -20℃~ 70℃
Operating humidity : 0-95%
Packaging and Delivery
1 set/box, including patrol reader, USB cable, charger, pouch, software
10 boxes/small carton, 35.5*23.4*33(cm)
30 boxes/big carton, 51.5*45.4*33(cm)
We accept customized package. And we provide customized logo for purchasing more than 50 pieces.
The goods will be delivered by UPS, DHL, FedEx.
FAQ
(1) How can we pay?
100% T/T confirm order
(2) When can the good be delivered?
The goods can be sent during 3-5 working days after the payment.
(3) What will be included in the package?
One set package box includes reader, pouch, charger, USB cable, certificate.
(4) Can logo customization be provided?
Yes, if more than 50 pcs are purchased, we provide logo customization.
