IP Rating IP67 USB Connect Data Transmission Three Lighting Modes Support Guard Tour System Electronic Device
IP67 USB Connect Data Transmission Guard Tour System Electronic Device
1. Description

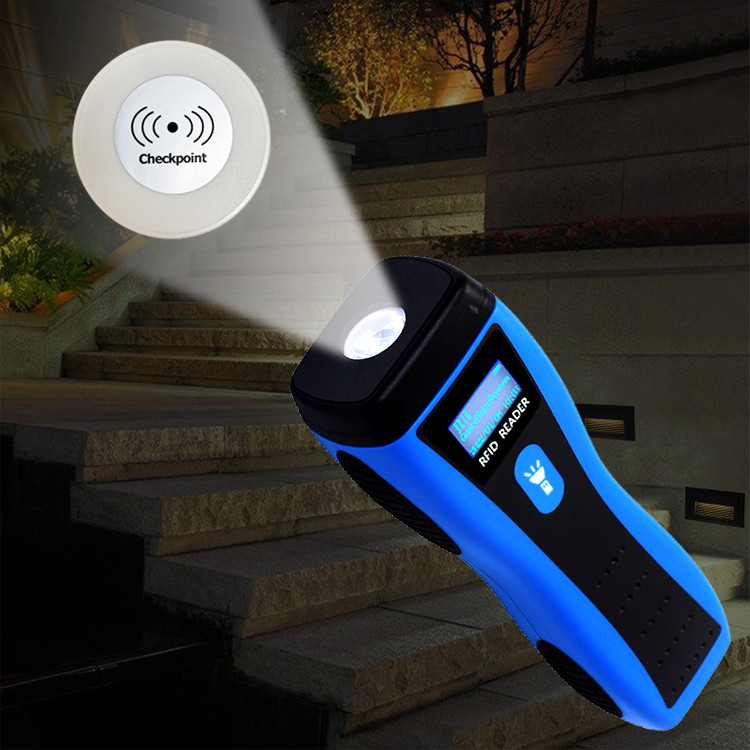

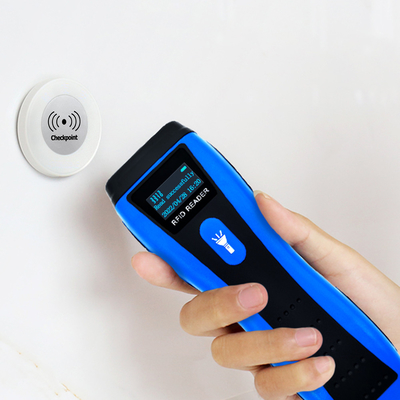

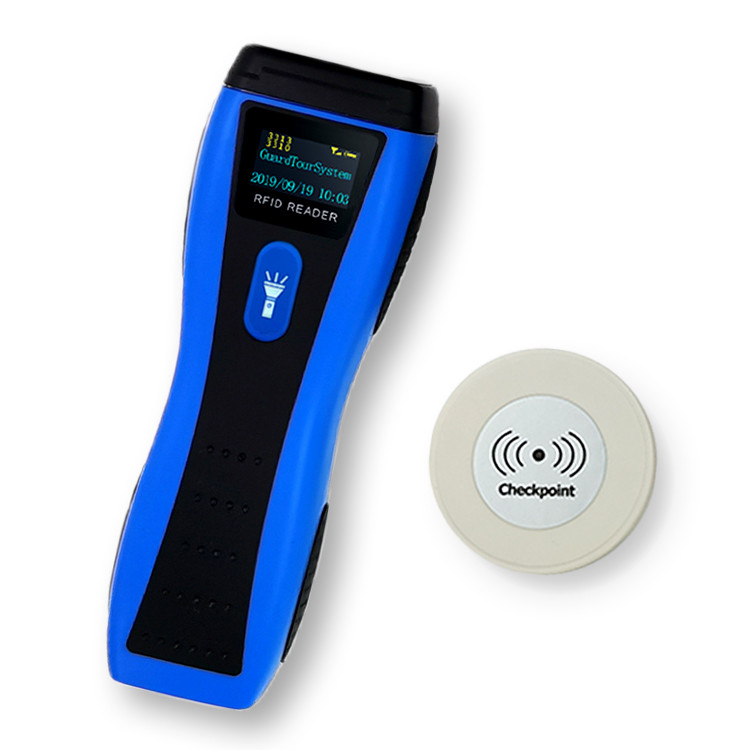

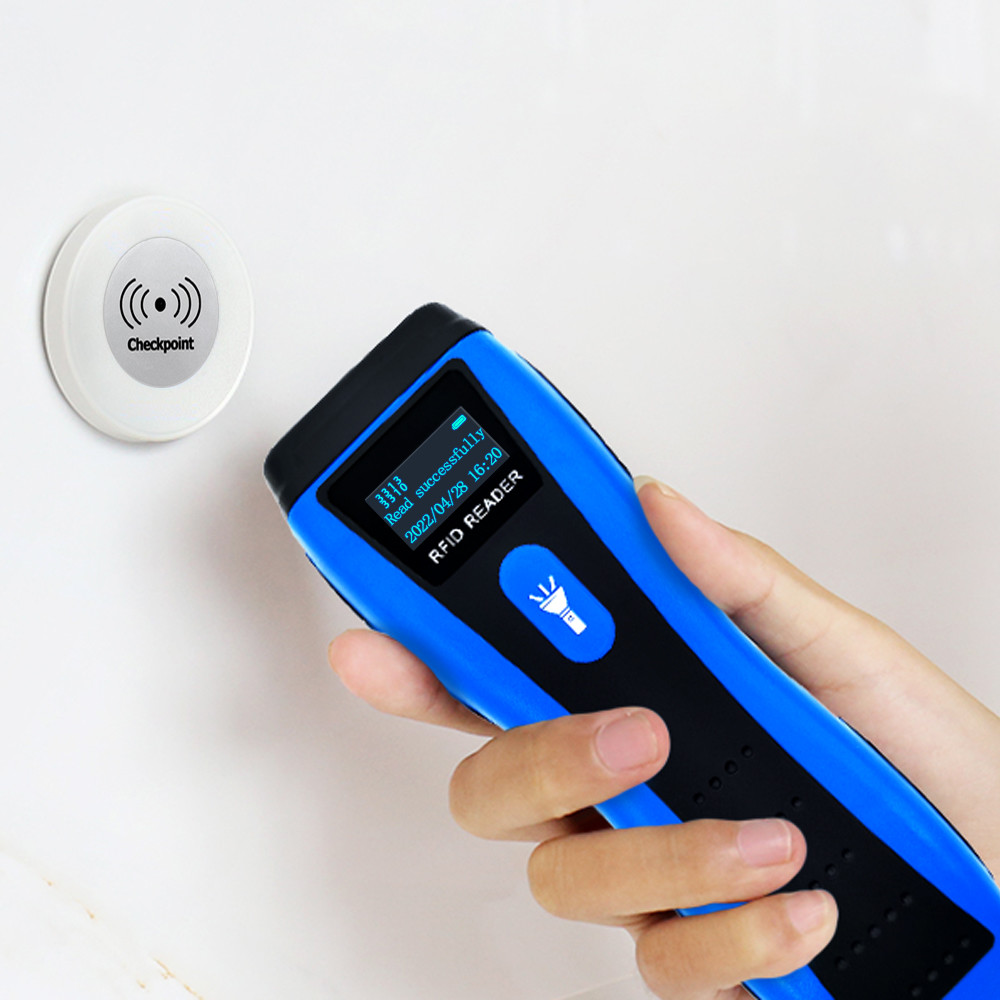

HUA-101ZS with protection grade IP67 is not only USB connect data transmission patrol product but also guard tour system electronic device with optional three lighting modes: strong light, medium light and flashlight. The stand-alone guard tour software is in mutlti-language and free to use. HUA-101ZS device is anti-fall, anti-earthquake pressure resistant and fall resistant compact fuselage. It can still work even after dropping from 20m height and also on rainy days. The charging port of the device is magnetic suction port and anti-destructive. When the device reads, the prompt will be in Light, Beeping, Vibration and LED screen. It includes 3.6V rechargeable Lithium battery and 1,800 mah battery capacity. It takes about 5 hours to be full charge. A full charge can take up for about 20 hours on all the time.A full charge will support about a week on the basic of 400 times reading per day.
2. Specification
| Dimension | 140*42*28 (mm) | ||||||
| Weight | 100g | ||||||
| Read mode | RFID 125 khz | ||||||
| Read distance | 3-5 cm | ||||||
| Read prompt | Light + beep + display screen | ||||||
| Read time | Less than 0.3 seconds | ||||||
| Battery capacity | 1,800 mah | ||||||
| Function | With emergency alarm, drop record prompt, patrol alarm clock and so on | ||||||
| Lighting | Convenient for your night patrol | ||||||
| Material | Two-color integrated injection molding process: PC+ABS(black)/TPU(blue) | ||||||
3. Features
(1) Screen display with various inspection prompts
(2) Voice function, operational status report with clear details
(3) Optional three lighting modes: strong light, medium light, flaslight
(4) Magnetic suction interface charging port
(5) Various characteristics with excellent quality such as: Metal material,Magnetic charging port,Voice prompt,Multilingual display,Strong lighting, Flashlight touch switch
4. More details of HUA-K2 Guard tour system
1. Communication mode: USB cable
2. Charging mode: magnetic suction contact interface
3. Battery capacity: 1800mA polymerized physical battery
4. Card reading distance: 3-5cm induction card reading
5. Indicating mode: light/vibration/voice prompt/LED display
6. Operating temperature: -40℃-85℃ operating frequency: 125KHZ
7. The shell adopts two-color injection molding process, waterproof, shockproof, anti-low temperature design; Waterproof and resistant to falling,
8. Convenient and flexible: more convenient and flexible, only need to install the patrol point,
9. With emergency alarm, falling record prompt, inspection alarm clock, etc
10. Lighting design: convenient night patrol
5. Application
Guard tour system products are widely used in:
6. Product Design
The whole machine is waterproof design, strong sealing and anti-skid design. The device even can work on the rainy day.
Since the device is anti-fall, anti-earthquake pressure resistant and fall resistant compact fuselage, so it's easy to carry arround.
7. Package
One set (including Reader, pouch, Charger, USB cable) in a blue inner box, 10 inner boxes in a small carton, 30 inner boxes in a big carton *customized package* *logo customization of the product*
