| Place of Origin: | China |
|---|---|
| Brand Name: | HUAguard |
| Certification: | ROHS/CE/FCC |
| Model Number: | HUA-101X |
| Minimum Order Quantity: | 1 |
| Packaging Details: | 1 set/box,10 boxes/small carton,30 boxes/big carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500 pcs/day |
| Price: | USD 90-150/pc | Type: | Touch Probe |
|---|---|---|---|
| Color: | Black | Usage: | Patrol Check |
| Feature: | Downloader | Software: | Stand Alone |
| High Light: | wand Patrol Checkpoint System,security patrol wand system,Checkpoint security guard clocking system |
||
Silicon Inner Coating Magnificent Stainless Steel Read Zone HUA - 101X Patrol Guard Tour Button Contactor
1. Product Details

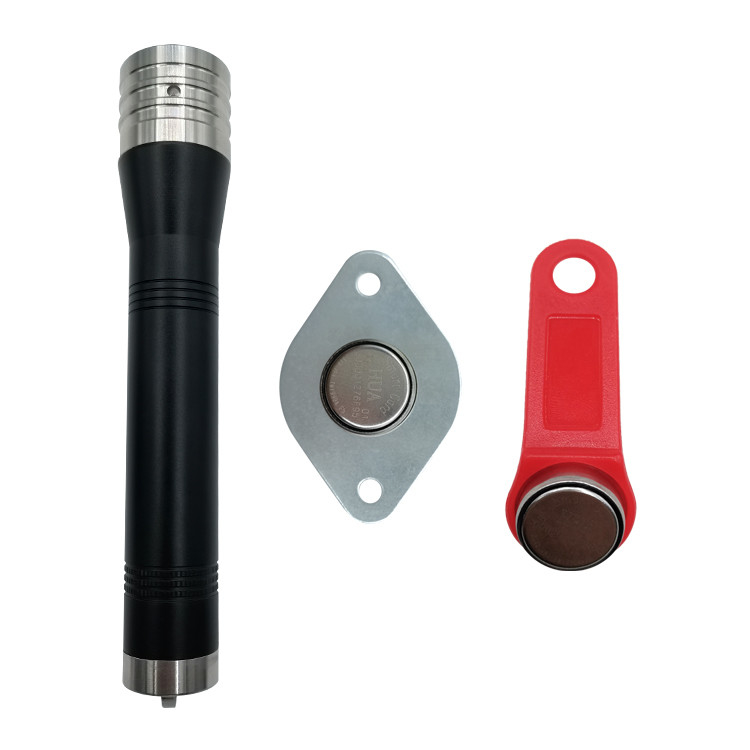

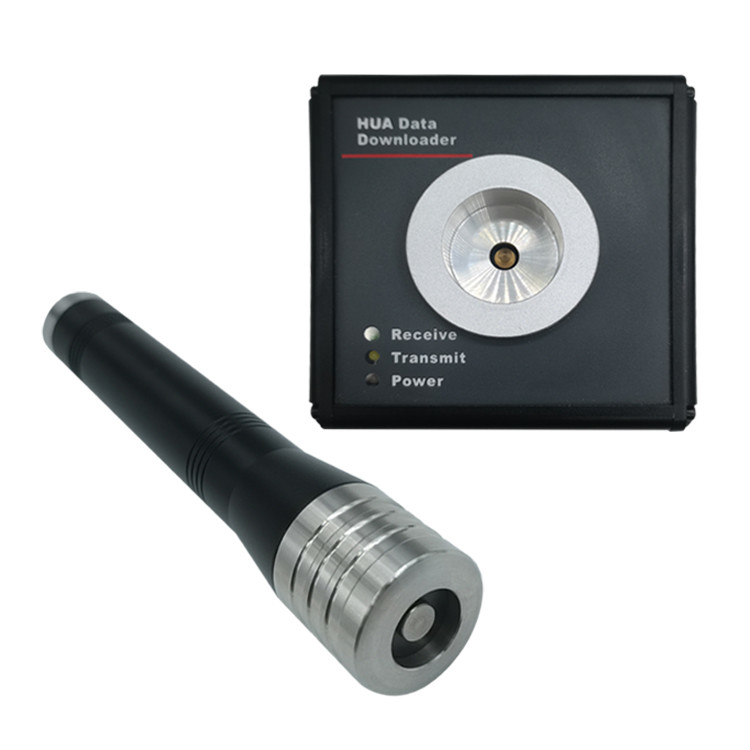

HUA-101X is a kind of patrol guard tour button contactor with magnificent304 stainless steel read zone and its inner layer is coated by silicon. There are two parts of HUAguard HUA-101X model patrol guard tour button contactors. One part is 101X, which is touch guard tour contact reader. Another part is 101XT downloader or download station, which is used for data transmission to PC and is connected to PC with USB. This product and software is a kind of perfect system to provide the managers with the advanced levelness and technological management level of all kinds of patrol inspection assessment. 101X reader's dimension : 180*32*24(mm), 101XT downloader's dimension : 10×10×3.5 cm. Checkpoint touch buttons are installed on wall or equipment etc as a checkpoint. Checkman touch ID tags are used as patrolman identification. Buttons are the electronic chips stored in the stainless steel case that is water-resistant. Button type is 1990A-TM iButton, global unique ID. It can be for life-span: > 20 years.
2. Technical data sheet
| Touch Guard Tour Reader |
Dimension | 180*32*24(mm) | ||||||
| Weight | 215g | |||||||
| Color | Black | |||||||
| Storage Capacity | 16MB, can store up to 10,000 records | |||||||
| Battery | 3.6V built-in lithium battery | |||||||
| Read mode | touching | |||||||
| Read distance | 0cm, must touch checkpoint | |||||||
| Read indication | light and vibration | |||||||
| Read time | less than 1s | |||||||
| Software | Stand-alone, free | |||||||
| Downloader | Dimension | 10×10×3.5 cm | ||||||
| Weight | 140g | |||||||
| Color | Black | |||||||
| Communication Port | USB | |||||||
| Physical | Alloy | |||||||
| Power | 6V , 50hz | |||||||
| Function | Communicate with computer via USB port, high-speed and stable transmission and data transfer... | |||||||
3. Characteristics
1. 304 Stainless steel reading head
2. Long and elongate rod style
3. Built-in flexible silicon layer
4. Indicator red flesh reading prompt
5. Guard Tour System HUAguard software
6. Patrol plan schedule on the software
4. Usage
(1) Used for patrolling
(2) Widely used in Communities, Hospitals, School, Construction site, Industries, etc.
5. Package & Shipping

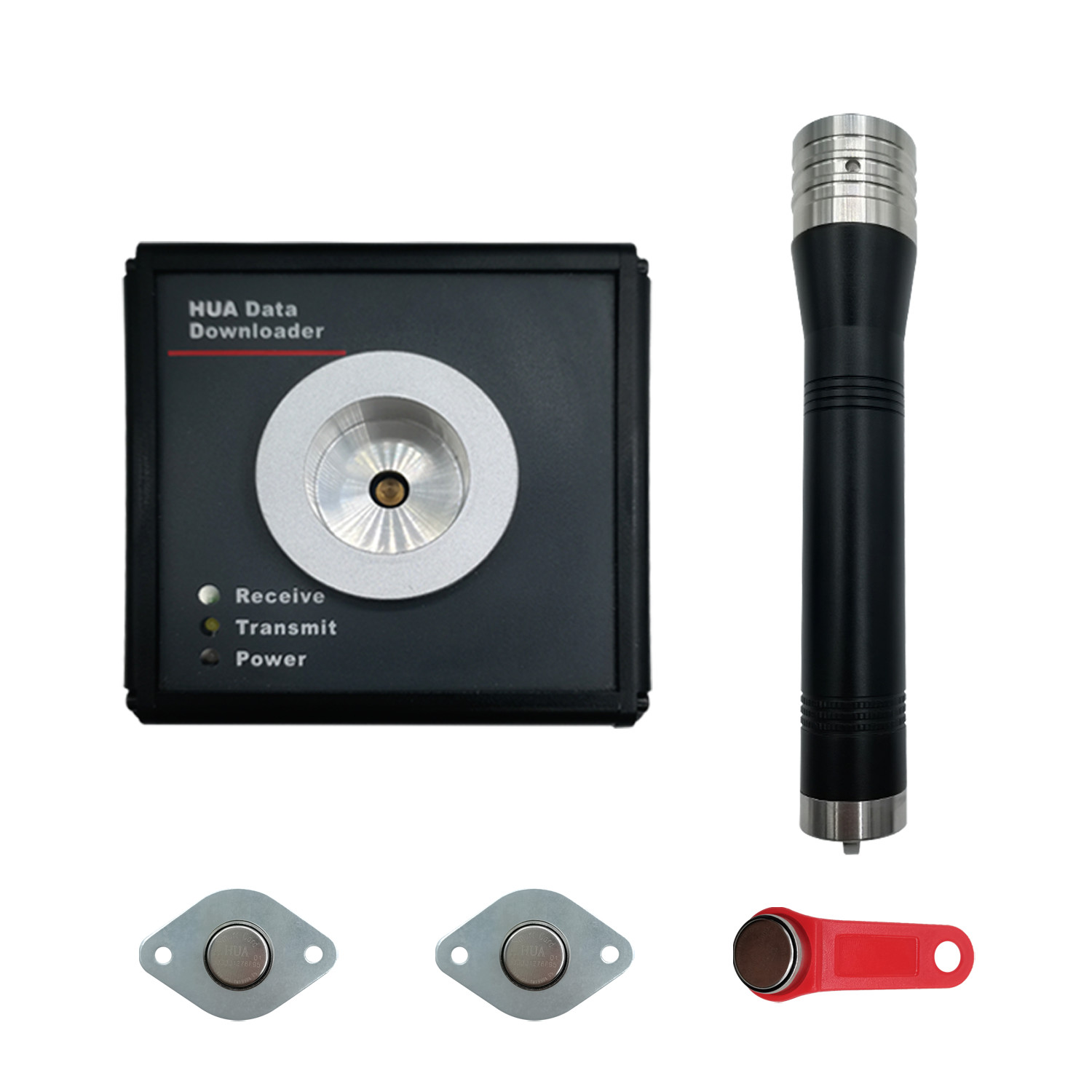

One set includes a patrol reader HUA-101X, downloader 101XT, and one cable, with free cloud management software.
* There are 4 options for charger type. Please contact me to select.*
We deliver the goods within 3 to 5 working days after receiving the payment.
6. Advantage
Free software (no need subscription)
Logo customization (>=50pcs)
7. FAQ
Q: Can it work well in my side?
A: Of course it can and it's carefully tested before delivery to ensure it's with good quality and function.
Q: Do you charge for your software? How?
A: We provide standard cloud software in English based on our own server free of charge.
Q: Do you offer other versions of software besides English?
A: Yes, we could customize standard software for you in othe languages for free.
Q: Could you please send me more details?
A: My pleasure, Just feel free to contact us
