| Brand Name: | HUAguard |
|---|---|
| Certification: | ROHS/CE/FCC |
| Model Number: | HUA-101E |
| Minimum Order Quantity: | 1 |
| Price: | USD 45/pc |
| Packaging Details: | 1 set/box,10 boxes/small carton,30 boxes/big carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500 pcs/day |
| Place Of Origin: | Guangdong, China | Reading Type: | RFID |
|---|---|---|---|
| Battery: | Lithium Battery | Read Distance: | 3-5 Cm |
| Storage: | 60,000 Records | IP Rating: | IP67 |
| High Light: | Guard Tour Patrol System 26mm,Metro Station Guard Tour Patrol System,26mm Patrol Guard Tour System |
||
Black Color Diameter 26mm Handheld RFID Guard Tour System Patrol Reader for Metro Station
HUA-101E Handheld RFID Guard Tour System Patrol Reader
1. Guard Tour Patrol Reader Description
HUA-101E handheld light guard tour system patrol reader eliminates the phenomenon that the patrol personnel cannot be scientifically and accurately assessed and managed, effectively guarantees the orderly work flow of the complex, and puts the patrol personnel management work into practice. The attendance scope limited to specific time, place and personnel through the system preset, can meet the special attendance of various occasions, convenient to record the time and status information of the staff to arrive at the patrol point. HUA-101E is ordinary version of patrol system, supports single patrol, the data can be downloaded by USB, supports the guard tour software which is multi-language, and the use of PC query patrol report data.
2. Guard Tour Patrol Reader Specification
| Product specifications |
Reading | mode | distance | time | prompt |
| RFID | 3-5cm | <0.3 s | light+vibration | ||
| Reader | dimension | weight | color | material | |
| 158*26 (mm) | 125g | Black | Metal | ||
| Battery | type | capacity | charging time | ||
| 3.7V rechargeable lithium battery |
1,800 mah | About 5 hours | |||
| can read 400 times per day in a week with a full charge | |||||
3. Guard Tour Patrol Reader Parameters
Data Transmission: USB communication
Network: No need SIM card
Protection grade: IP67
Power consumption: Standby current 0.12mAh
Storage capacity: About 60,000 records
4. More details of the Guard Tour Patrol Reader
(1) Product performance: Super aluminum alloy structure, surface hard oxidation treatment, anti fall, waterproof design.
(2) Storage capacity: 60,000 data stores, which can be customized expanded to 120,000 data stores.
(3) Communication mode: USB communication mode, no need to install USB driver, plug and play.
(4) Card reading distance: Non-contact induction, 3-5 cm.
(5) Battery capacity: 650 mA polymerized physical battery.
(6) Read the card prompt: Read the card successfully with lights, vibration prompt.
(7) Battery power consumption: Standby current is within 0.12 milliampere, power consumption is 0.45 milliwatt.
(8) Product parameters: 158x26mm weight: 125g.
Guard tour patrol device HUA-101E is the use of the world's leading RFID automatic induction recognition technology, computer network communication and data processing technology, to achieve the assessment and management of patrol personnel. This RFID Guard Tour System is that its whole system comes up with RFID guard patrol reader, RFID 125khz checkpoints, RFID 125khz guard tags, standalone software.
5. Guard Tour Patrol Reader Application
Railway Station
Hospital
School
Shopping mall
Factories
Bank
Museums
6. Guard Tour Patrol Reader Packaging

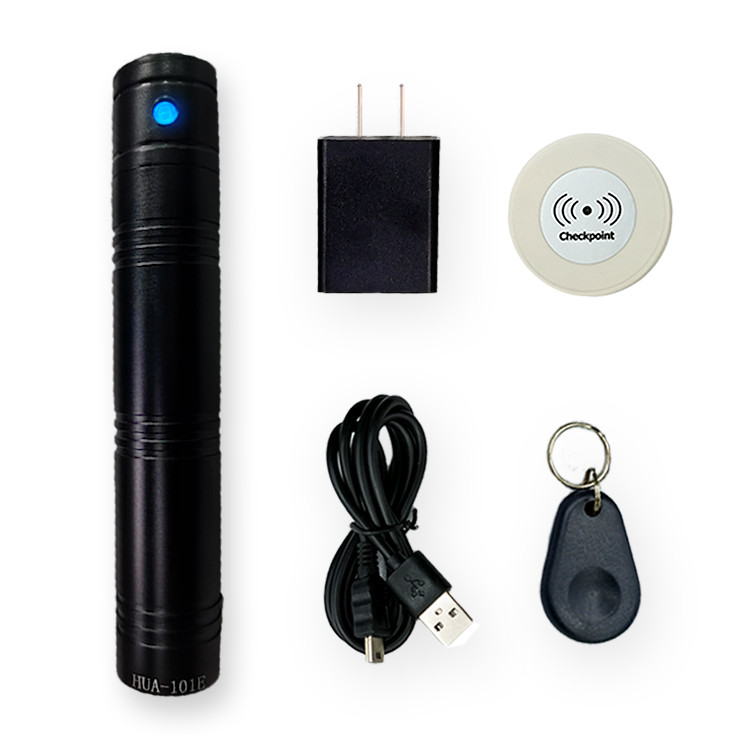

One set (including Reader, pouch, USB cable) in a blue inner box, 10 inner boxes in a small carton, 30 inner boxes in a big carton *customized package*
7. Shipping
(1) UPS
(2) DHL
(3) FedEx
8. FAQ
Q : How many days can I get the products if I placed purchase order?
A : In general, about 1-3 working days for Sample and ready stock; 15 working days for production order after receving order deposit.
Q : Which payment can be accepted?
A : T/T, Paypal, Western Union and L/C etc.
Q : When did you start?
A : We have started our factory from year 2000, and we have experience of producing and developing Biometric attendance and access control terminals for more than 15 years. All of our engineers are professors in this area.
Q : Can you customize logo?
A : For purchasing more than 50 pcs, we provide logo customization.
