| Place of Origin: | China |
|---|---|
| Brand Name: | HUAguard |
| Certification: | ROHS/CE/FCC |
| Minimum Order Quantity: | 1 |
| Price: | USD 90-150/pc |
| Packaging Details: | 1 set/box,10 boxes/small carton,30 boxes/big carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500 pcs/day |
| Model Number: | 101X | Type: | Touch Probe |
|---|---|---|---|
| Frequency: | 125khz | Brand: | HUA |
| Purpose: | Patrol Check | Certificate: | ROHS/CE/FCC |
| High Light: | Security Guard Patrol Management System,Guard Patrol Management System 215 Grams,Management security guard clocking system |
||
Guard Patrol Management System Shockproof Black 215 Grams Mass Touch Reading Stick Patrol Checkpoint Data Downloader
Overview

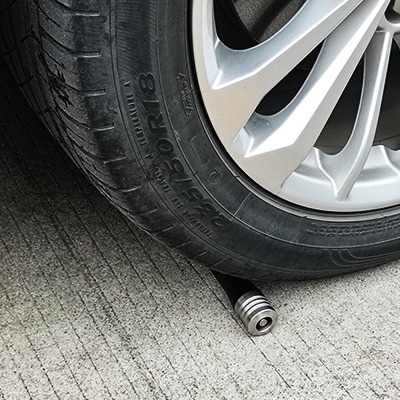

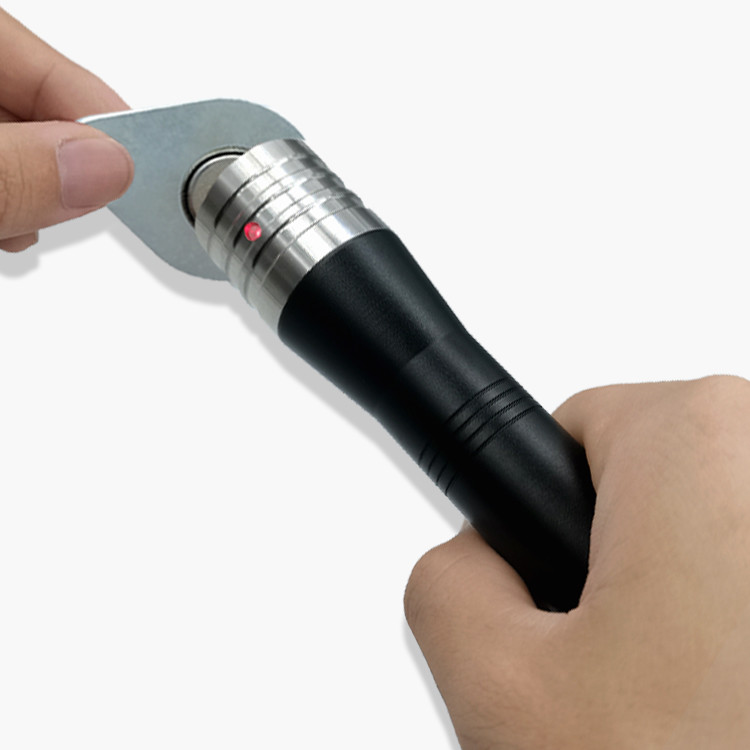

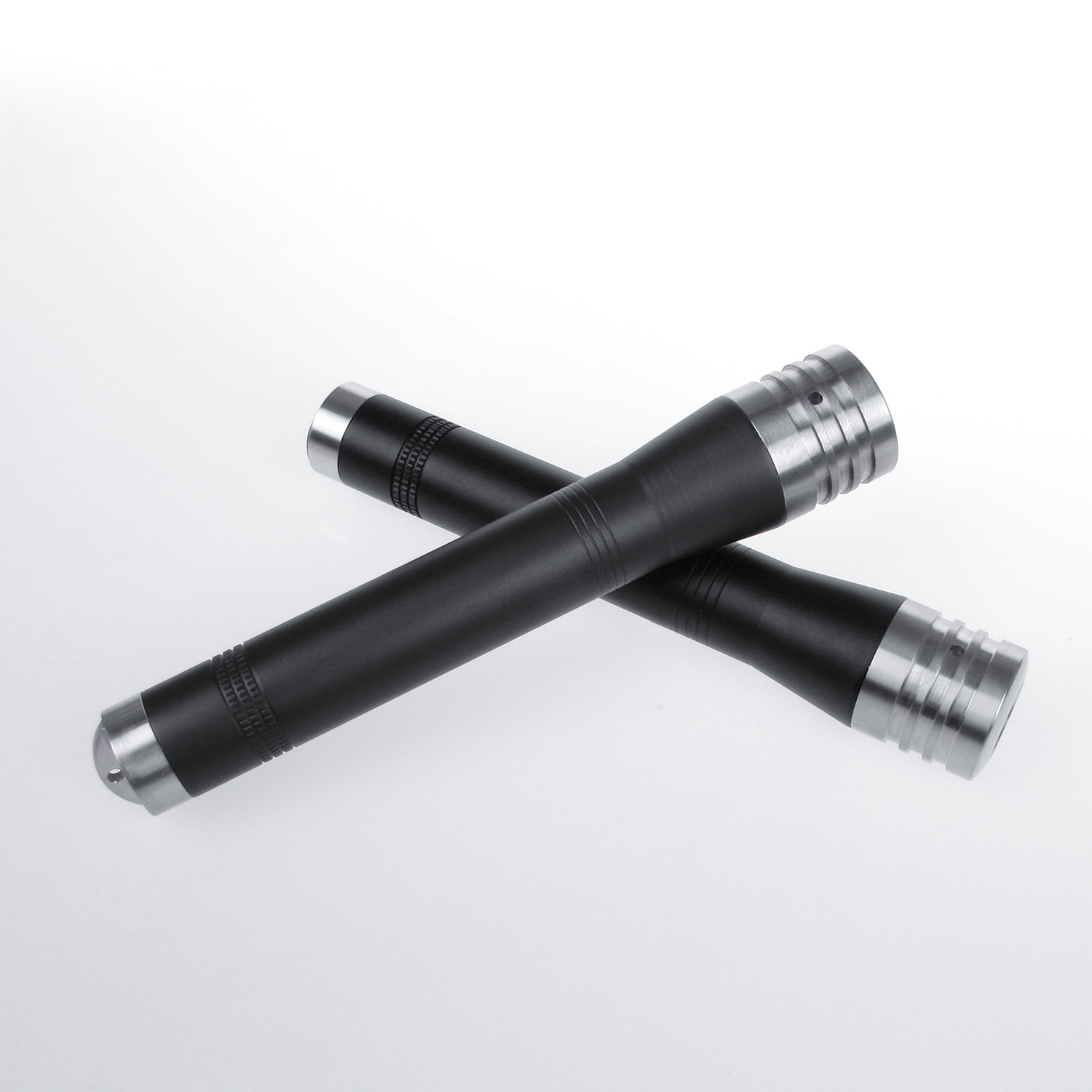

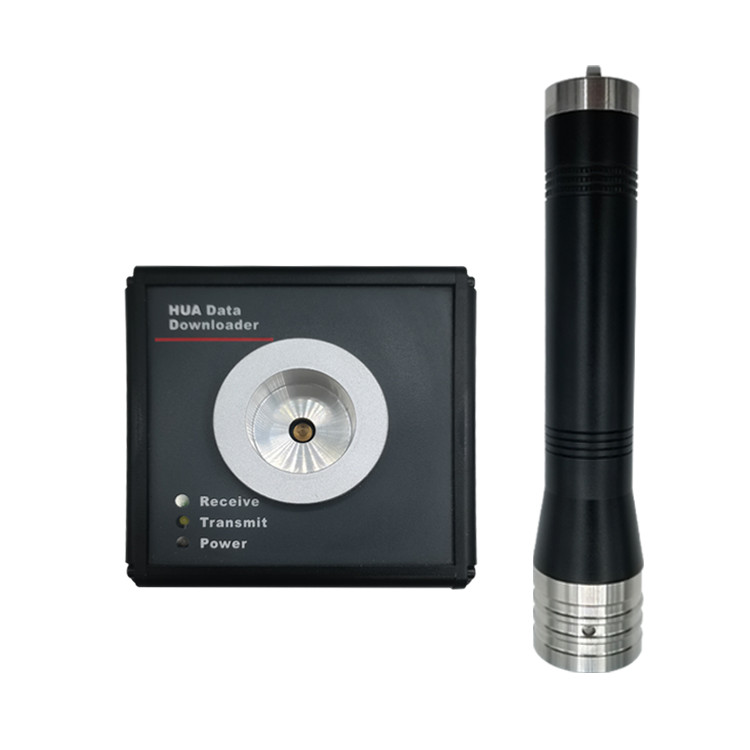

HUA-101X is a kind of 215 grams patrol checkpoint system touch reading stick. The HUA-101X reading stick is shockproof, waterproof and the colors of it and HUA-101XT data downloader are both black. Downloader's mass is 140g. HUA-101X reading stick and HUA-101XT downloader are in ergonomic structure hammer style. It is very suitable for seurity patrolmen to hold and to use when they patrol. Since product type is touch induction type, the stick will read the button checkpoints from the zero cm distance. The battery is 3.6V built-in lithium battery and a full charge can support about 15 full days continuously reading tags. Each checkpoints has been installed with the touch button, from which the patrolman may read the checkpoints with HUA-101X patrol-stick. The patrol-stick then will generate records, with each containing the code number and time of the touch button checkpoints.
Technical data sheet
| Touch Guard Tour Reader |
Dimension | 180*32*24(mm) | ||||||
| Weight | 215g | |||||||
| Color | Black | |||||||
| Storage Capacity | 16MB, can store up to 10,000 records | |||||||
| Battery | 3.6V built-in lithium battery | |||||||
| Read mode | touching | |||||||
| Read distance | 0cm, must touch checkpoint | |||||||
| Read indication | light and vibration | |||||||
| Read time | less than 1s | |||||||
| Software | Stand-alone, free | |||||||
| Downloader | Dimension | 10×10×3.5 cm | ||||||
| Weight | 140g | |||||||
| Color | Black | |||||||
| Communication Port | USB | |||||||
| Physical | Alloy | |||||||
| Power | 6V , 50hz | |||||||
| Function | Communicate with computer via USB port, high-speed and stable transmission and data transfer... | |||||||
| Checkpoint Touch Button |
Install on wall or equipment etc as a checkpoint. | Physical: Electronic chip stored in the stainless steel case that is water-resistant. Type: 1990A-TM iButton, global unique ID. Life-span: > 20 years |
||||||
| Checkman Touch Button |
Used as patrolman identification. | |||||||
Usage
(1) Used for patrolling
(2) Widely used in Communities, Hospitals, School, Construction site, Industries, etc.
Package
One set includes a patrol reader HUA-101X, and 101XT Downloader, and one cable, with free cloud management software.
* There are 4 options for charger type. Please contact me to select.*
Shipping
How HUA-101X works
First step: Install checkpoints at patrol locations
Second step: Get guard ID tags information
Third step: Set patrol schedule on the software
Fourth step: Start to patrol
Last step: View reports on the software, Computer query
8. FAQ
Q: Can it work well in my side?
A: Of course it can. It's carefully tested before delivery to ensure it's with good quality and function.
Q: Do you charge for your software? How?
A: We provide standard cloud software in English based on our own server free of charge.
Q: Do you offer other versions of software besides English?
A: Yes, we could customize standard software for you in othe languages for free.
Q: Could you please send me more details?
A: My pleasure, Just feel free to contact us
