| Place of Origin: | China |
|---|---|
| Brand Name: | HUAguard |
| Certification: | ROHS/CE/FCC |
| Model Number: | HUA-101E |
| Minimum Order Quantity: | 1 |
| Price: | USD 45/pc |
| Packaging Details: | 1 set/box,10 boxes/small carton,30 boxes/big carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 500 pcs/day |
| Weight: | 125g | Color: | Black |
|---|---|---|---|
| Type: | RFID | Frequency: | 125khz |
| Data Transmission: | USB | Shell Material: | Aluminium Alloy |
| High Light: | USB Guard Patrol Monitoring System,Guard Patrol Monitoring System 158mm,Monitoring security patrol wand system |
||
Length 158 mm / Diameter 26 mm Cloud Management Software HUAguard Patrol Guard Tour System USB Data Transfer
Product Details of HUA-101E Patrol Guard Tour System

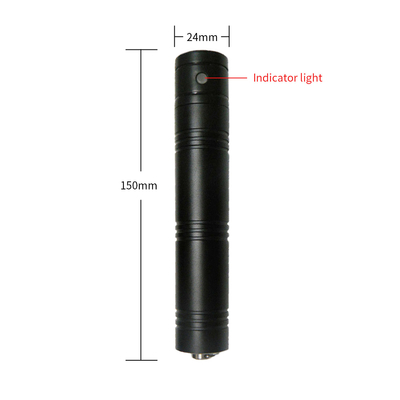

Since HUA-101E patrol guard tour system device's length is 150 millimeters and its diameter is 26 millimeters, it is long, rod or stick style, and easy to carry around. As long as the checkpoints are installed in the designated patrol area, HUA-101E guard tour system hand-held device will function each patrolling point position, with 3-5 cm read distance induction patrolling in less than 0.3s. And patrol inspection device will automatically record accurate time and attendance, and through the USB communication, those data will be transmitted to the monitoring software at the backend management center. This product's software is standalone software and for free to users who brought this product. HUA-101E's drop resistance and waterproof quality make it more reliable and unique from other products in the market. Our manufacturers has made it by using aluminum alloy body that make it extra ordinary. Its inside body has been covered by silicon layer. Besides quality, its standy by time is simply awesome. If you charge it fully you can make use of it continues for almost 15 days.
Features
| Product specifications |
Reading | mode | distance | time | prompt | ||
| RFID | 3-5cm | <0.3 s | light+vibration | ||||
| Reader | dimension | weight | color | material | |||
| 158*26(mm) | 125g | Black | Metal | ||||
| Battery | type | capacity | charging time | ||||
| 3.7V rechargeable lithium battery |
1,800 mah | About 5 hours | |||||
| can read 400 times per day in a week with a full charge | |||||||
| Technical parameters | Read mode | RFID auto-induction, no need to touch | |||||
| Read distance | 3-5 cm | ||||||
| Read indication | light and vibration | ||||||
| Communication | USB, no need to install USB driver | ||||||
| Software | Stand-alone, free | ||||||
| Power Consumption | 0.45 mW | ||||||
| Standby current | within 0.12 mA | ||||||
| Feature | indicator light when reading | ||||||
| Storage Capacity | 16MB, can store up to 60,000 records | ||||||
Guard Tour System Software
As you can see the interface, this software can help you to manage the patrol line and patrolman and view the report about how the job be done or whether the patrolman is on time. And set plan for guard tour patrol work.
Applications
(1) Used for patrolling
(2) Widely used in Communities, Hospitals, School, Construction site, Industries, etc.
Advantages
(1) Strong and durable
(2) Very few after-sales problems
(3) Free Software with multiple languages
(4) Long standby time and low power consumption
(5) HUA-101E electronic guard tour inspection system can completely provide managers with improved the standardization and scientific management level of all kinds of patrol inspection work.
(6) It eliminates the phenomenon that the patrol personnel cannot be scientifically and accurately assessed and managed, effectively guarantees the orderly work flow of the complex, and puts the patrol personnel management work into practice.
Packaging

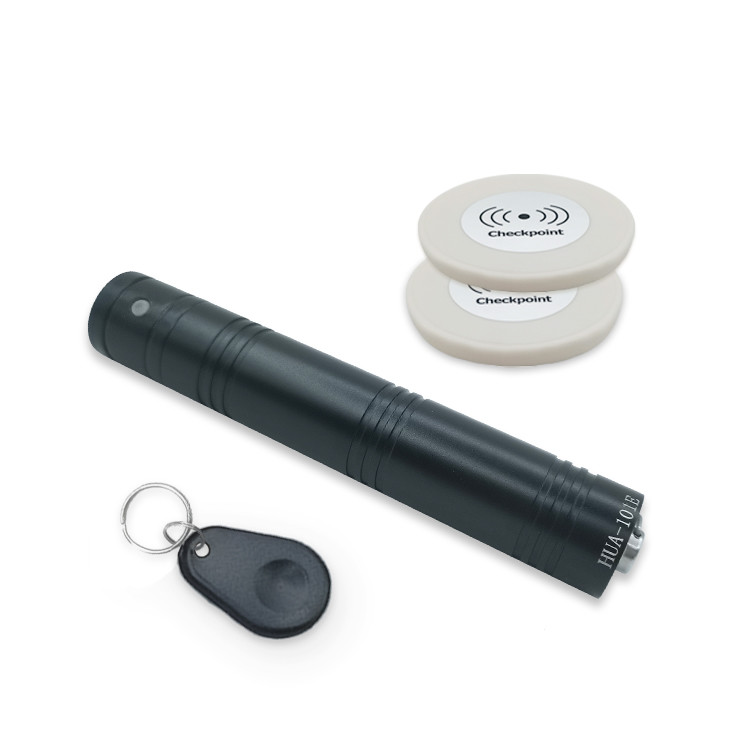

One set will include one reader, ten checkpoints, two ID tags, one pouch, one charger, one cable, and one certificate. Free software will be sent via email or any communication platform.
Option : Need to choose the type of charger, please contact me to do so.
Shipping
DHL, UPS, FedEx
FAQ
Q: What is your delivery time?
A: We will deliver the goods within 3-5 work days after receive the payment.
Q: Can you provide logo customization?
A: Yes. If purchased more than 50 pieces, we provide logo customization.
Q: Is there any subscription for software? How?
A: No. If you purchase our product, the software is totally free.
